ITEM
|
Unit
|

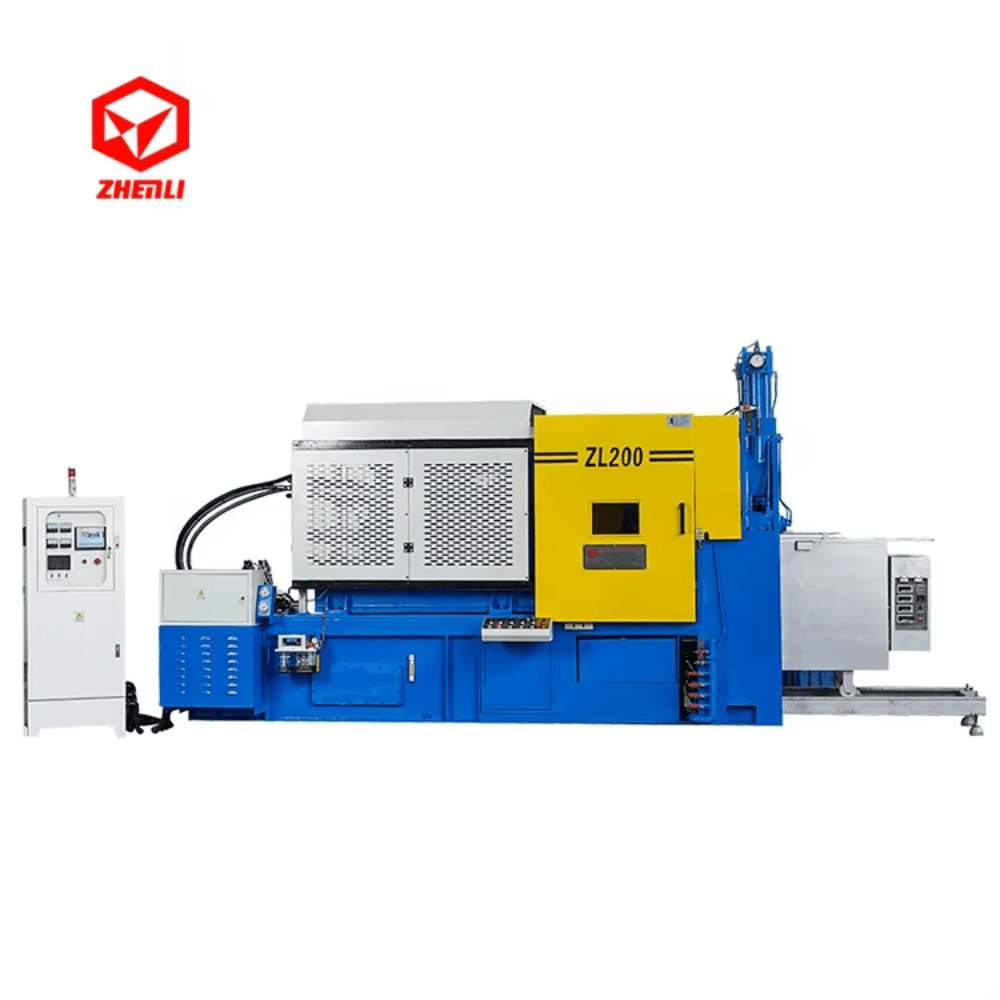

ZL-200T
|
||
|
Locking Force
|
KN
|
2000
|
||
|
Die Stroke
|
mm
|
370
|
||
|
Ejection Force
|
KN
|
110
|
||
|
Ejection Stroke(Max)
|
mm
|
100
|
||
|
Die Thickness(Min-Max）
|
mm
|
250-560
|
||
|
Tie Bar Diameter
|
mm
|
90
|
||
|
Space Between Tie Bars(W×H)
|
mm
|
510×510
|
||
|
Shot Position
|
mm
|
0 ,-100
|
||
|
Plunger Stroke
|
mm
|
175
|
||
|
Traverse Stroke
|
mm
|
210
|
||
|
Injection Force(Max)
|
KN
|
130
|
||
|
Diameter Of Plunger
|
mm
|
65
|
70
|
|
|
Max Shot Weight(Zn)
|
Kg
|
2.85
|
3.32
|
|
|
Hydraulic Pressure
|
Mpa
|
14.5
|
||
|
Motor Power
|
KW
|
18.5
|
||
|
Crucible Capacity(Zn)
|
Kg
|
400
|
||
|
Capacity Of Accumulator
|
L
|
30
|
||
|
Furnace Energy Consumption
|
Diesel-Fired Furnace
|
KG/h
|
6.3
|
|
|
Electric Furnace
|
KW
|
30
|
||
|
Capacity Of Oil Tank
|
L
|
400
|
||
|
Machine Size(L×W×H)
|
mm
|
5300×1520×2500
|
||
|
Weight of Machine
|
kg
|
7600
|
||
