Item
|

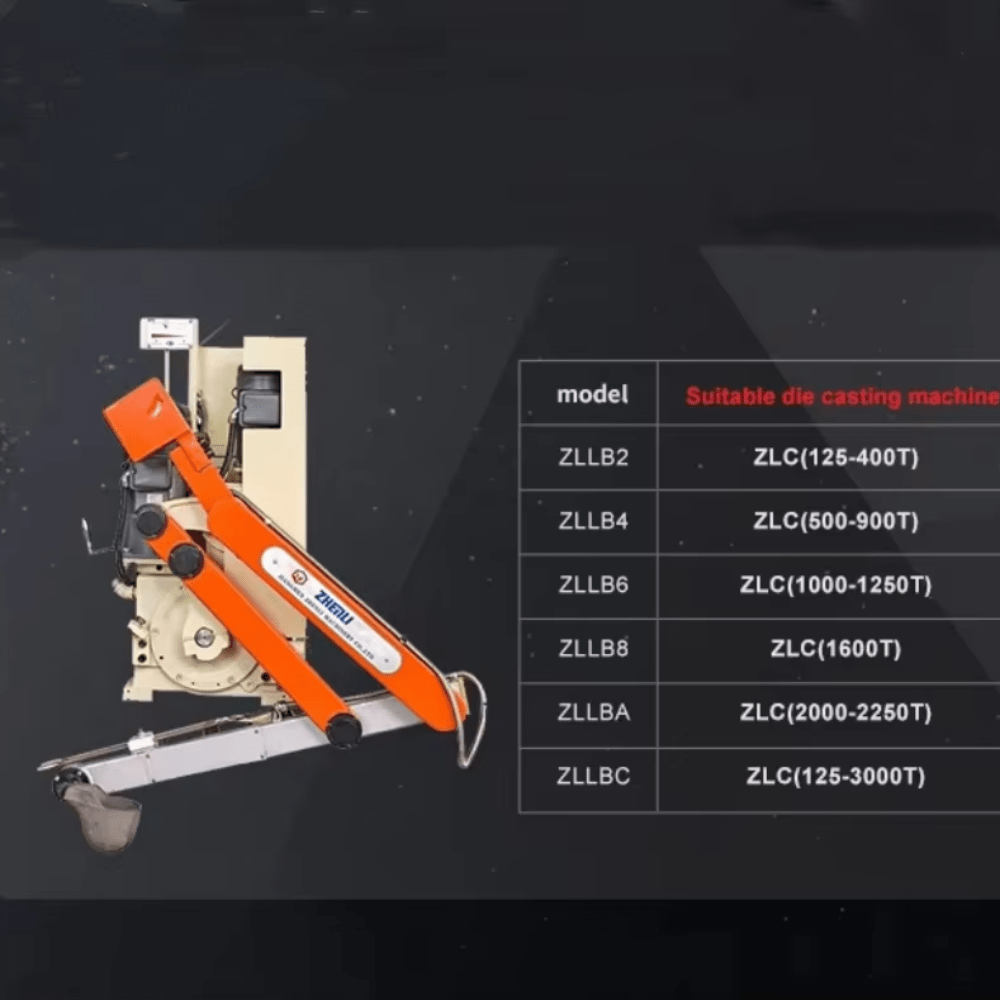

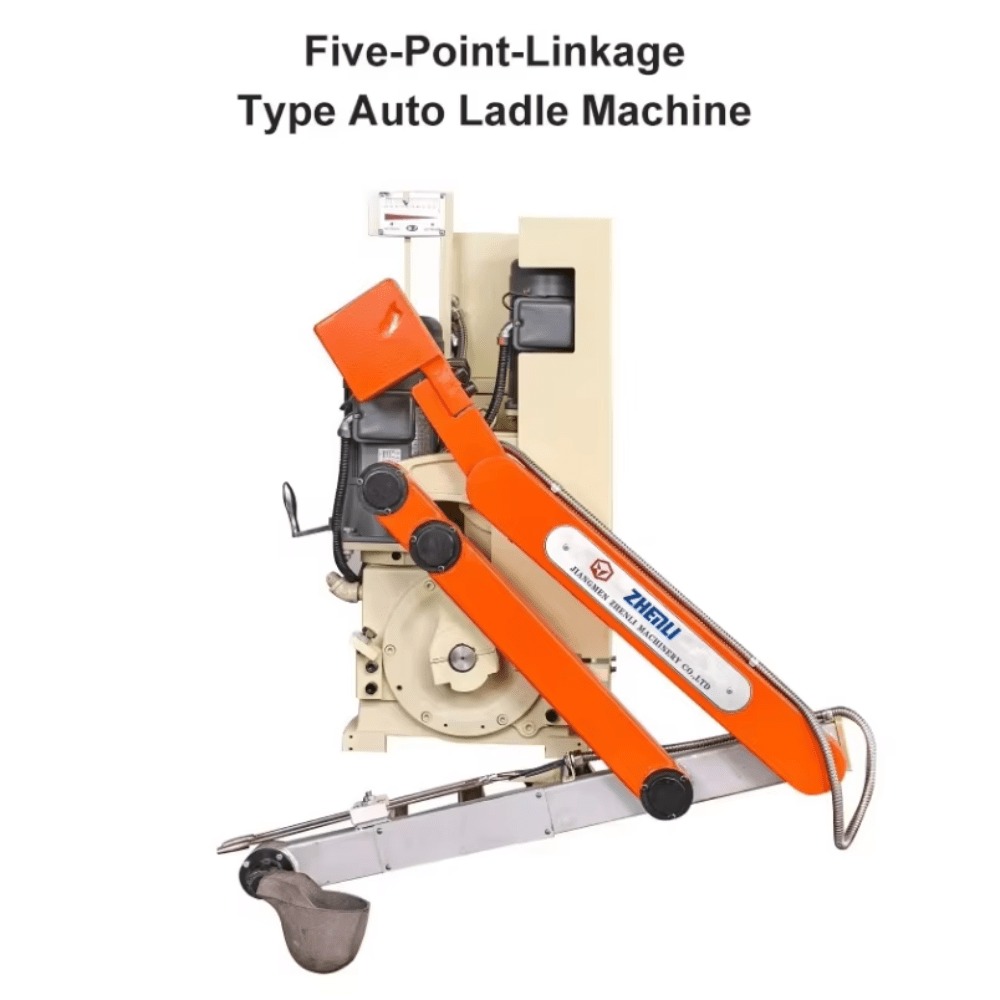

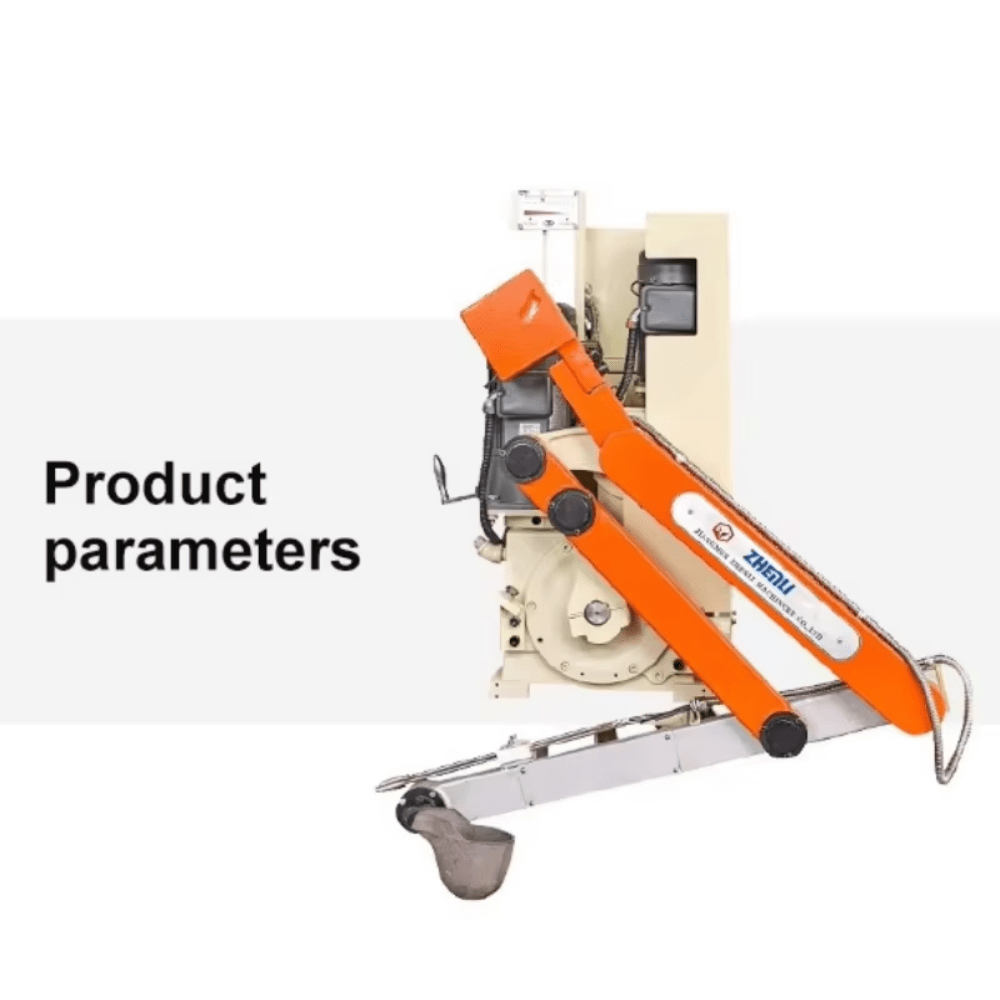

Five Point Linkage Type Auto Ladle Machine
|
|||||
|
Model
|
ZLLB2
|
ZLLB4
|
ZLLB6
|
ZLLB8
|
ZLLBA
|
ZLLBC
|
|
Suitable die casting machine
|
125-400T
|
500-900T
|
1000-1250T
|
1600T
|
2000-2250T
|
125-3000T
|
|
Pouring capacity
|
0.5~3.5kg
|
3.5~8.0kg
|
8~15kg
|
12~20kg
|
15~25kg
|
25~35kg
|
|
Pouring accuracy
|
±2%
|
|||||
|
Cycle time
|
Max.15sec
|
Max.18sec
|
Max.30sec
|
Max.35sec
|
Max.40sec
|
Max.50sec
|
|
Diameter of crucible
|
Min.550mm
|
Min.650mm
|
Min.800mm
|
Min.850mm
|
Min.1000mm
|
Min.1100mm
|
|
Filling Depth
|
Max.280mm
|
Max.420mm
|
Max.430mm
|
Max.480mm
|
Max.680mm
|
Max.680mm
|
|
Arm motor power
|
750W
|
1.5KW
|
2.2KW
|
3.7KW
|
||
|
Spoon motor power
|
200W
|
400W
|
750W
|
|||
|
Main panel power
|
2Φ-380V 50-60Hz
|
|||||
|
Operating power
|
DC24V
|
|||||
|
Power capacity
|
1.5KVA
|
3.0KVA
|
3.75KVA
|
5.6KVA
|
||
|
Weight
|
270KG
|
275KG
|
336KG
|
510KG
|
850KG
|
900KG
|
