Item
|

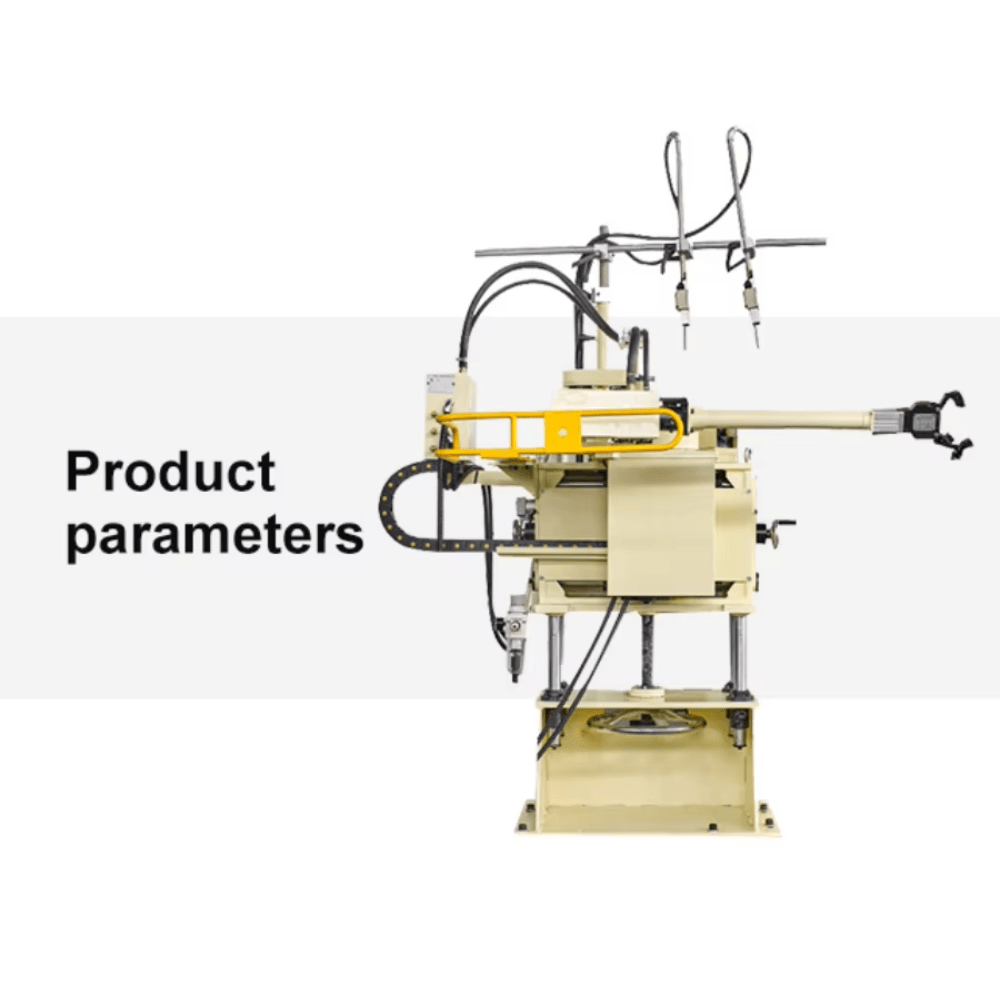

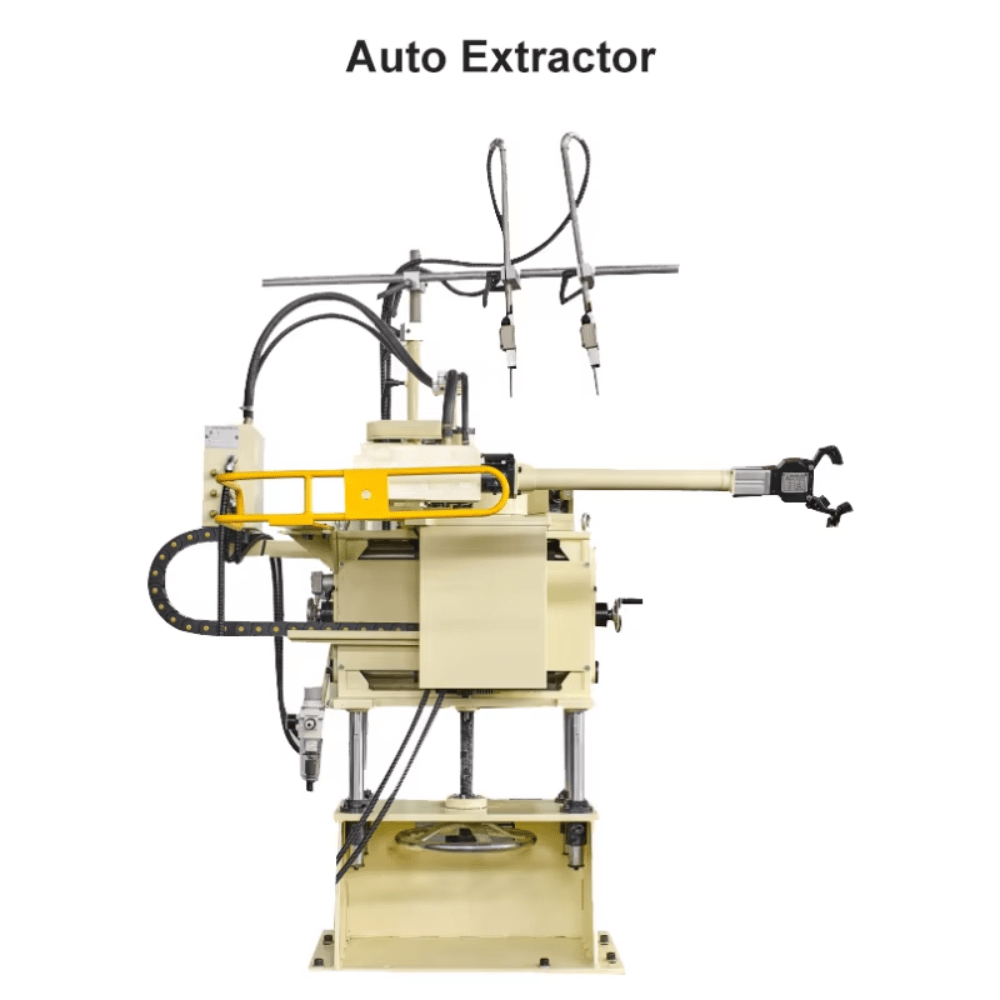

Auto Extractor Machine
|
|||
|
Specification/model
|
ZLEH-1#
|
ZLEH-2#
|
ZLEH-3#
|
ZLEH-4#
|
|

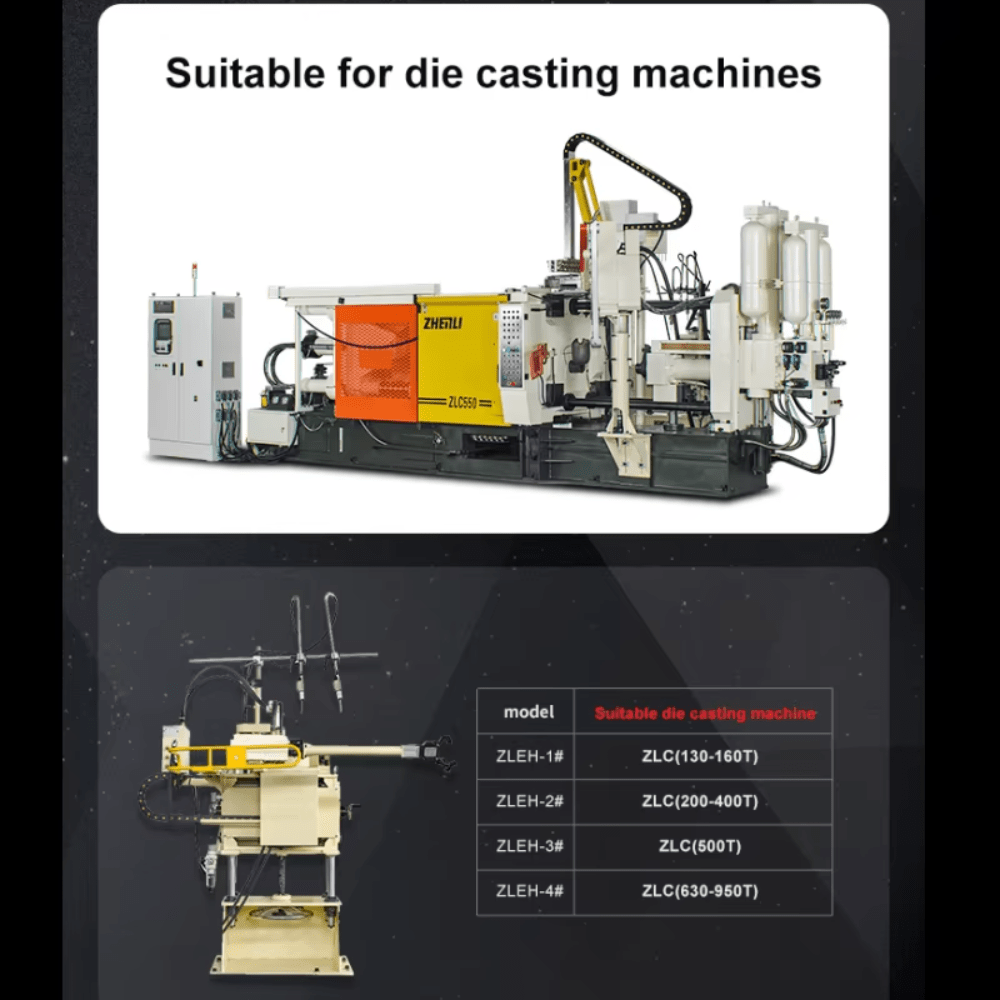

Suitable die casting machine
|
130-160T
|
200-400T
|
500T
|
630-950T
|
|
Width of fixed mold
|
780mm
|
1100mm
|
1150mm
|
1450mm
|
|
Biscuit diameter
|
50-70mm
|
80-110mm
|
||
|
Pulling force
|
≥65kgf
|
≥95kgf
|
||
|
Distance of pulling direction
|
≤250mm
|
≤400mm
|
||
|
Arm stroke
|
1560mm
|
1780mm
|
2160mm
|
2250mm
|
|
Input air pressure
|
4-6.5kgf/cm²
|
|||
|
Air pressure inlet
|
PT3/8″
|
|||
|
Extracting weight
|
≤3.5kg
|
≤8kg
|
||
|
Motor power
|
400w
|
750w
|
||
|
Mounting method
|
Ground mounting/Fixed mounting
|
Floor installation is recommended
|
||
